Opto 7 Board Switch Assy

Opto Board 7 Switch Assy

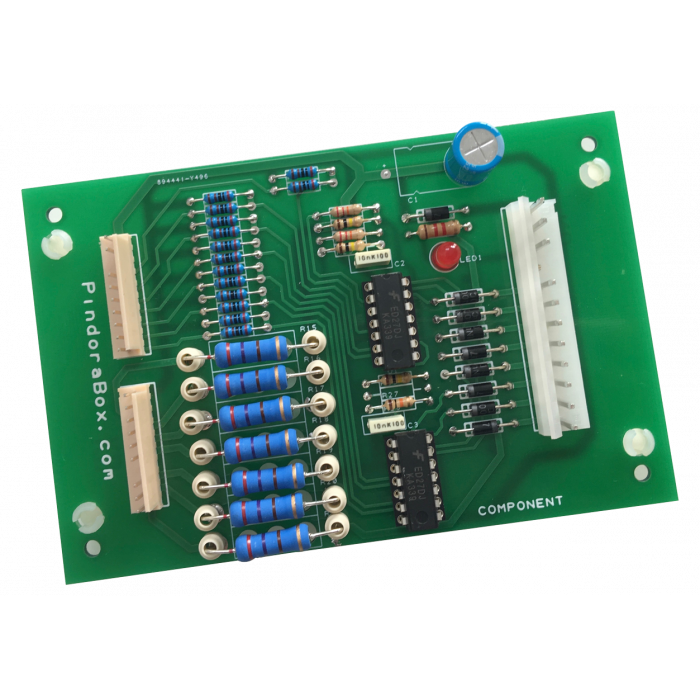

Brand new redesign of the 7 opto PCB board.

Improved design:

• Thicker copper tracks.
• Extra ventilation holes for the 7 resistors to prevent heat damage.
• The 7 resistors are raised and placed on ceramic feet.
• All LM339's are placed on feet for easy serviceability.

Made by PindoraBox. Thinking out of the box!

Used in these games:

• Addams Family
• Cirqus Voltaire
• Demolition Man
• Flintstones
• Jack Bot
• Judge Dredd
• NBA Fastbreak
• Road Show
• Tales of the Arabian Nights
• Theatre of Magic
• Whitewater
• World Cup Soccer 94

Partnumbers:

• A-14977
• A-15576
• A-15595 replacement (PCB #5768-12921-0X)
